2 Way Manifold Valves

2 Way Manifold Valves Manufacturing and Exporters

2 Way Manifold Valves

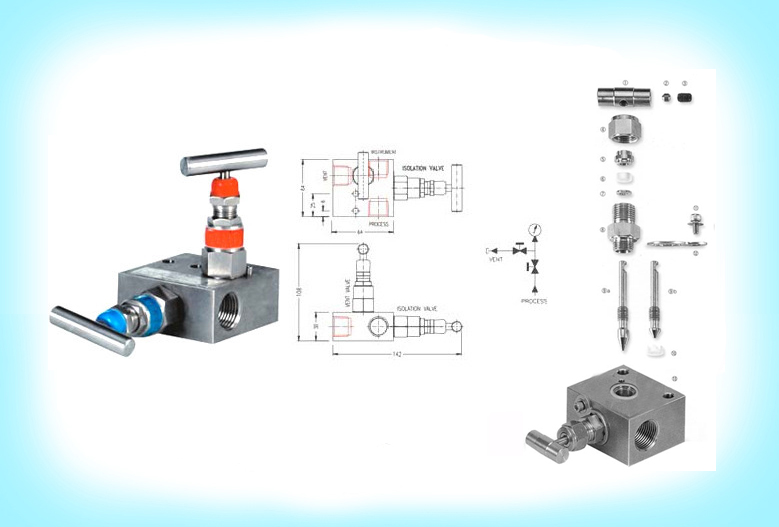

Priti Enterprises 2 Valve Manifolds offer safety and reliability in a general purpose design. The simple 2- Valve Configuration allows for easy block, bleed and calibration of a static pressure transmitter or gauge. Valves are available with either metal seats or replaceable soft seat inserts. Connections are 1/2 female NPT on all three ports.

SPECIFICATION
Connection : 1/2" Female NPT to 1/2" Female NPT.
One-piece, high strength body construction for safety no welding used.
Stems feature an non-rotating top with an easily replaceable soft insert.
Bonnet lock pin prevents accidental valve disassembly.
316 stainless steel construction for superior corrosion resistance.
Bonnet-to-body seals are metal-to-metal-no O-Rings used.
Mounting holes provided for self supporting applications.
100% pressure tested for shut-off and at all seals.
Manifolds feature at 4:1 safety factor.


Application : • Oil and Gas Industry • Refinery Industry • Power Generation Industry • Automobile Industry
• Chemical & Fertilizer Industry • Nuclear & Defense Industry


All Dimensions are for reference only, and are subject to change without prior Notice Sizes and types other than featured above are available on request.
